Borofloat33 Glass Wafer
Glass Wafer
-
+86-17701852595 WhatsApp
-
sales@plutosemitech.com Email

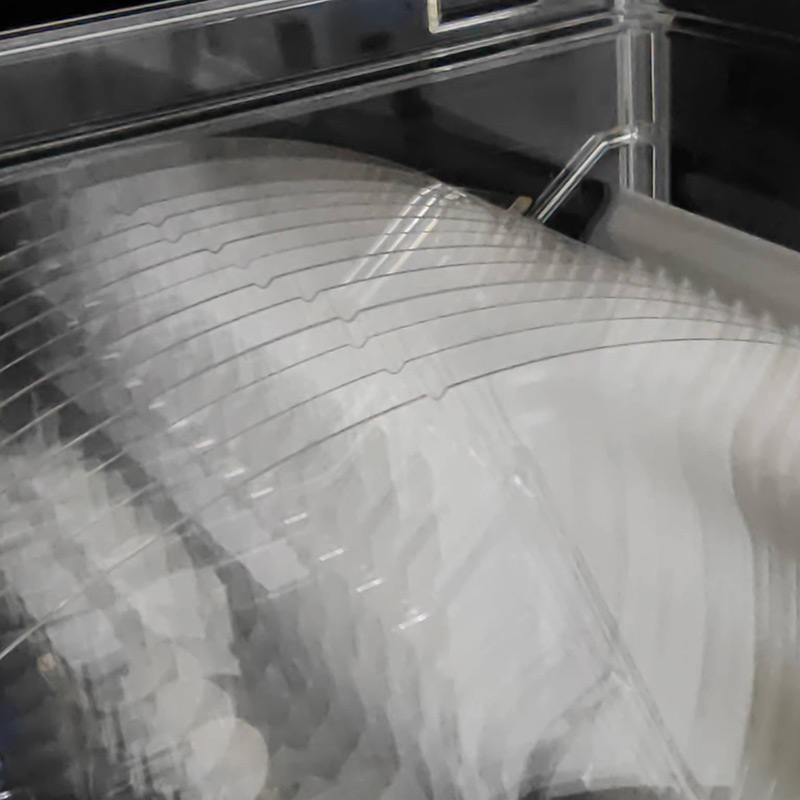

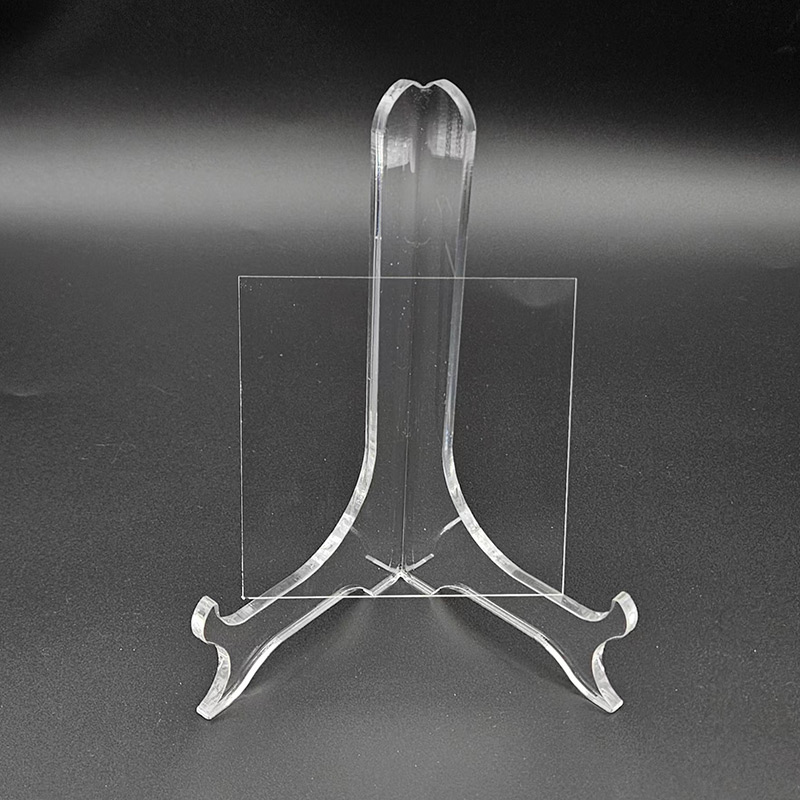

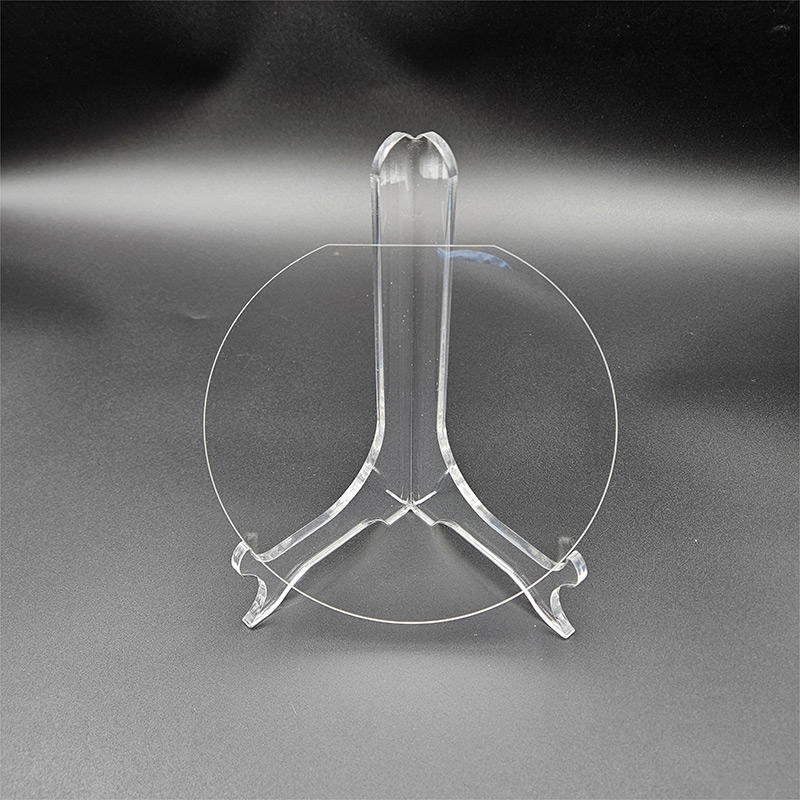

Borofloat33 Glass Wafers are high-quality, precision-engineered products designed for a wide range of applications. Manufactured by SCHOTT, these wafers are made from a special borosilicate glass (SiO2, B2O3, Na2O, K2O, Al2O3), offering excellent thermal stability, low expansion, and high durability. Available in sizes ranging from 2 inches to 12 inches, with customizable options, Borofloat33 is ideal for cleanroom environments, boasting a hundred-class clean room packaging. The glass wafers are available in various surface finishes such as DSP, SSP, and DSL, and can be tailored to your specific thickness and diameter requirements. Furthermore, the product complies with RoHS standards, ensuring environmental safety and quality. As a leading China Borofloat33 Glass Wafer manufacturer, our Borofloat33 wafers are crafted using the innovative Microfloatation growth method, ensuring superior uniformity and precision.
Product Name: Borofloat33 Glass Wafer
Size：2/4/6/8/12inch or customized
Package：Hundred-class clean room
Customized Support：YES
RoHS：YES
Delivery Methods：Logistics Express
Marketable Area：oversea
Growth Method：Microfloatation
Base: SiO2，B2O3，Na2O, K2O，Al2O3
Borofloat33 Glass Wafer Specifications
| Optical Property | |||
Refractiive Index (nd (λ587.6 nm)) | Abbe Numbe r(ve = (ne– 1) / (nF‘ – nC‘)) | Dispersion | Stress Photoelastic Coefficien (in (nm/cm)/MPa) |
| 1.47140 | 65.41 | 71.4 x 10-4 | 4.0 x 10-6 mm2 N-1 |
| Chemical Stability | ||
| Waterproof | (According to ISO 719 / DIN 12 111) | HGB 1 |
| (According to ISO 720) | HGA 1 | |
| Acid resistance | (According to ISO 1776 / DIN 12 116) | 1 |
| Alkali resistance | (According to ISO 695 / DIN 52 322) | A 2 |
| Mechanical Property | |
| Item | Value |
| Density ρ (25 °C) | 2.23 g/cm3 |
| Shear Modulus Ε (DIN 13316) | 64 kN/mm2 |
| Poisson's ratio μ (DIN 13316) | 0.2 |
| Knoop Hardness 0.1/20 (ISO 9385) | 480 |
Bending Strength σ(DIN 52292 T 1) | 25 MPa |
| Electrical Property | ||
| Item | Value | |
| Dielectric Constant（εr） （25℃，1 MHz） | 4.6 | |
| Leakage Constant（tanδ） （25℃，1 MHz） | 37×10-4 | |
| Resistivity（lg ρ） | 250℃ | 8.0Ω·cm |
| 350℃ | 6.5Ω·cm | |
| Thermal Property | |
| Item | Value |
| Coefficient of Linear Thermal Expansion α(20 - 300 °C) | 3.25 x 10-6 K-1 * |
| Specific Heat Capacity Cp(20 - 100 °C) | 0.83 kJ/(kg·K) |
| Thermal Conductivity λ (90 °C) | 1.2 W/(m·K) |
| Technical Specifications | |||||||
| Diameter | 2inch | 3inch | 4inch | 5inch | 6inch | 8inch | 12inch |
| Thickness (um) | Depends on Request | ||||||
| Material | Borofloat33 | ||||||
| Grade/Brand | SCHOTT | ||||||
| Surface Finished | DSP、SSP、DSL | ||||||
| TTV (um) | ＜5 | ＜5 | ＜5 | ＜5 | ＜5 | ＜10 | ＜15 |
| Bow/Warp (um) | ＜20 | ＜20 | ＜30 | ＜30 | ＜30 | ＜40 | ＜60 |
| Ra (nm) | ＜1 | ||||||
| S/D (um) | 40/20 | ||||||
Special Indexes:
Ultra-flat glass wafer: TTV＜1um

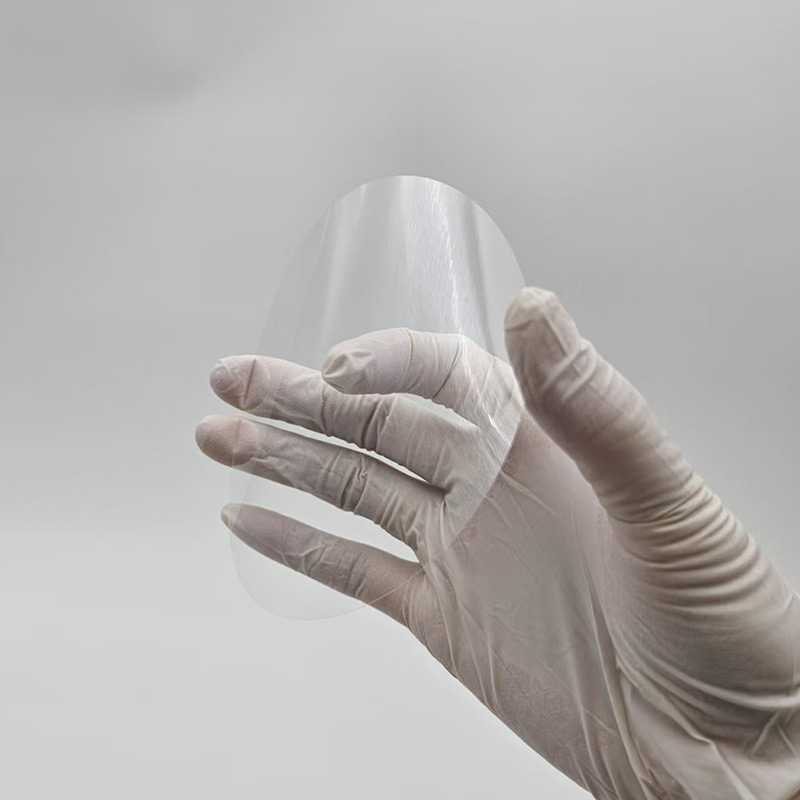

Ultra-thin glass wafer: Thickness: 0.1-0.3um
Ultra-smooth glass wafer: Ra≤0.2nm
Borofloat33 Glass Wafer Features
1. High-Quality Material: Made from premium Borofloat33, a borosilicate glass that offers superior chemical stability and low thermal expansion, ensuring reliable performance in various applications.
2. Precision Engineering: Manufactured using the advanced Microfloatation growth method, resulting in wafers with high uniformity, precision, and minimal defects.
3. Customizable Sizes: Available in a wide range of sizes, from 2 inches to 12 inches, with the option for custom sizes to meet specific requirements.
4. Cleanroom Packaging: Packaged in a hundred-class cleanroom environment to maintain high cleanliness levels and avoid contamination, ensuring the highest product quality.
5. Surface Finish Options: Offered in various surface finishes including DSP (Double-Side Polished), SSP (Single-Side Polished), and DSL (Double-Side Lapped), allowing for flexibility in different applications.
Borofloat33 Glass Wafer FAQ
What is Borofloat33 Glass?
Borofloat33 is a high-quality borosilicate glass, known for its excellent thermal stability, low expansion, and durability, commonly used in high-tech industries like semiconductors and optics.
What are the available sizes for Borofloat33 Glass Wafers?
Borofloat33 Glass Wafers are available in sizes ranging from 2 inches to 12 inches. Custom sizes can also be manufactured to meet specific needs.
What is the surface finish of Borofloat33 Glass Wafers?
The wafers come with various surface finishes, including DSP (Double-Side Polished), SSP (Single-Side Polished), and DSL (Double-Side Lapped), offering flexibility for different applications.
How is Borofloat33 Glass Wafer manufactured?
The wafers are made using the Microfloatation growth method, which ensures precise uniformity and high-quality production.
Packaging and Transportation
The packaging should be able to withstand the impact, vibration, stacking and extrusion that may be encountered during transportation, while also it has to easy to load, unload and handle.

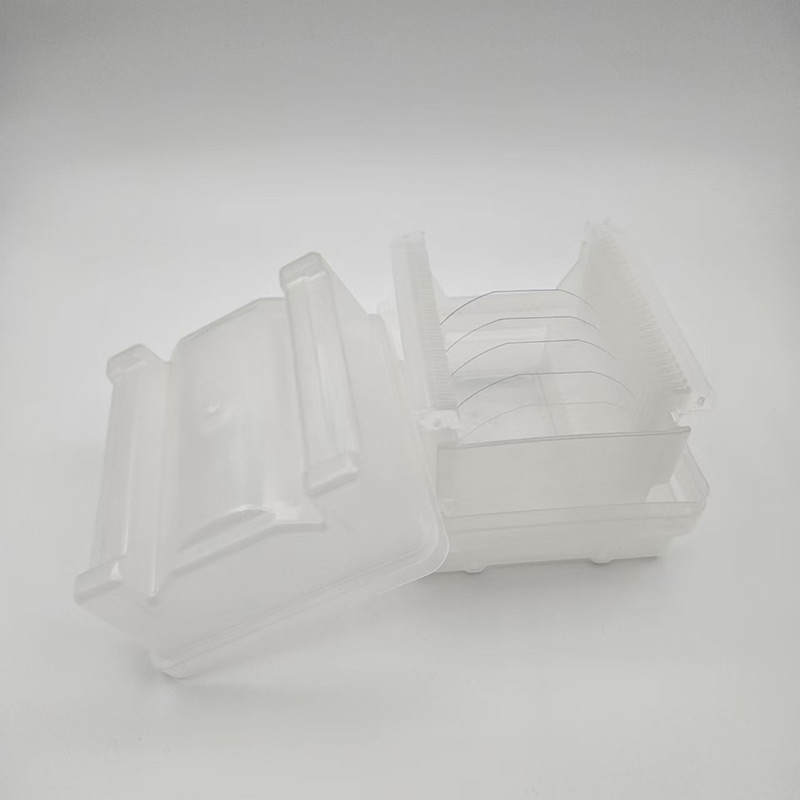

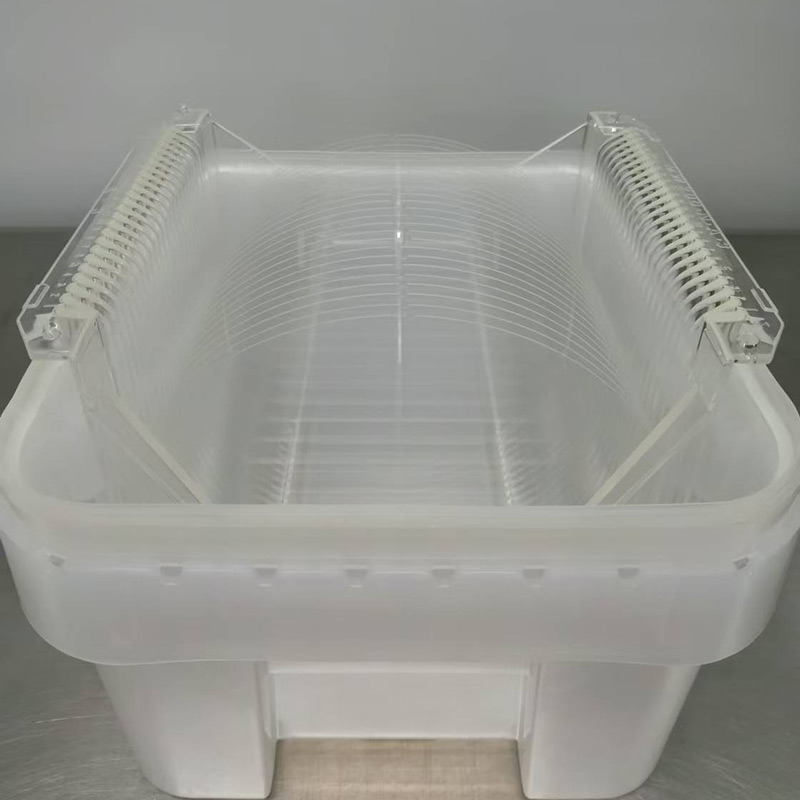

We use professional wafer box packaging. The wafer box is protected by a double layer bag, the inside is a PE bag that can be dust-proof, and the outside is a aluminum foil bag that can be isolated from the air. The two-layer bags are vacuum-packed.
We will choose carton models according to different sizes of products. And between the product and the carton filled with shock-proof EPE foam, play a comprehensive protection.
Finally choose air transport to reach the customer's hands. This allows customers in any country and region to receive the product in the fastest time.
We comply with the Material Safety Data Sheet (MSDS) rules to ensure that the products transported are free of harmful substances and will not cause environmental pollution and explosion and other possible hazards.
Enterprise Strength
Factory Area: 3000 sq
Process:
1. Shaping→2. Edge Profile→3. Lapping→4. Polishing→5. Cleaning→6. Packing→7. Transportation
Capacity:
Glass Wafer --- 30K pcs
Silicon Wafer --- 20K pcs
(Equal to 6in)
Quality Assurance
Quality inspection method: Product inspection in accordance with SEMI standard or according to customer's requirements, together with product COA.
Warranty period: In accordance with the contract requirements.
Quality system management：
●Organize production according to ISO9001 and other quality system standards.
Quality management system and measures:
●Establish a strict quality assurance system, the heads of all departments and quality engineers to ensure the coordinated operation of the quality system.
●Strengthen the quality inspection system, strengthen the process quality control
●Strict material quality control, ensure that the input materials meet the design requirements and technical specifications.
●Implement a timely filing system for technical data to ensure that all processing technical data is complete/accurate.
Quality control in the production stage:
●Production preparation stage: carefully organize relevant personnel to learn product drawings and technical rules, and improve the technical level of employees.
●Quality control of the production process: the implementation of a strict handover system, the previous step of the process to the next step of the transfer, should be detailed processing. At the same time, strengthen the quality inspection system to ensure the quality of each step of the process.
●Quality acceptance: All processes must be quality acceptance before proceeding to the next process.
Pre-sales and After-sales
Pre-sales Service
Professional technical support and commercial team to help you determine product specifications according to product use, and issue specifications.
On-purchase Service
Produce products according to the confirmed specifications and our process.
After Sale Service
We will respond to any product problems encountered by customers or process problems encountered by customers within 24 hours. We can choose from various forms of service, such as email, video conference and so on.
Plutosemi Co., Ltd. was established in 2019, headquartered in Nanhai, Foshan, focusing on the research and development, production, and sales of high-performance semiconductor materials.
Advanced production capacity: We have three major production bases in China, with a monthly production capacity of 100000 equivalent 6-inch silicon wafers and 30000 equivalent 8-inch glass wafers, ensuring stable and efficient product supply for our customers.
High quality products: We provide efficient and stable product supply innovative solutions in the fields of glass wafers, silicon polishing wafers, epitaxial wafers (EPI), silicon on insulator wafers (SOI), and more. Our silicon wafers have the characteristics of ultra-thin, ultraflat, and high-precision, which can meet the needs of various high-end applications. Our glass and quartz substrates are also renowned for their high smoothness and precise aperture design.
